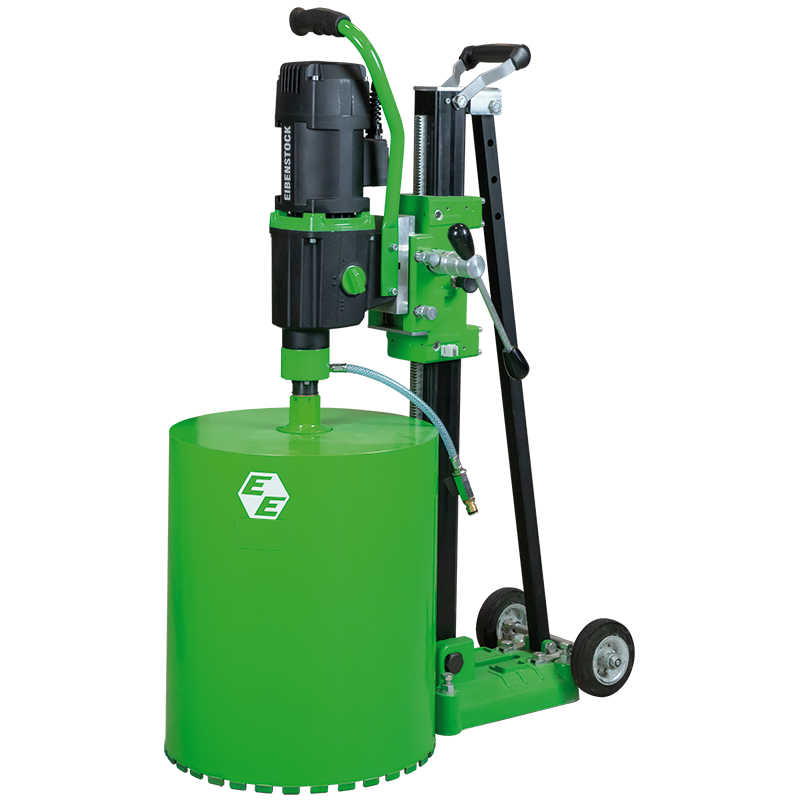

PLE 450.2 3 Speed 3300w Diamond Drilling Unit
- PLE450.2 diamond drilling unit
- For drilling large diameter holes in concrete
- Heavy duty three speed diamond drill, rig mounted
- Powerful motor & mechanical gearbox
- Dust free diamond drilling with vac
- Water feed for drilling reinforced concrete
- Quick release clamp for use with drill rig
PLE450.2 is a powerful diamond drilling unit with a heavy duty three speed gearbox
The drill is used with water feed for drilling reinforced concrete
A quick release clamp is supplied for use with drill rig
Max drilling with rig in concrete 452mm
Data sheet
- Power rating
- 3300w
- Rated speed
- 150/340/700rpm
- Max Core
- 452mm
- Spindle connection
- 1¼" UNC male
- Vibration
- 3.8m/s
- Noise level
- 91dBA
- Weight
- 42.3kg
*wattage based on 230v rating
