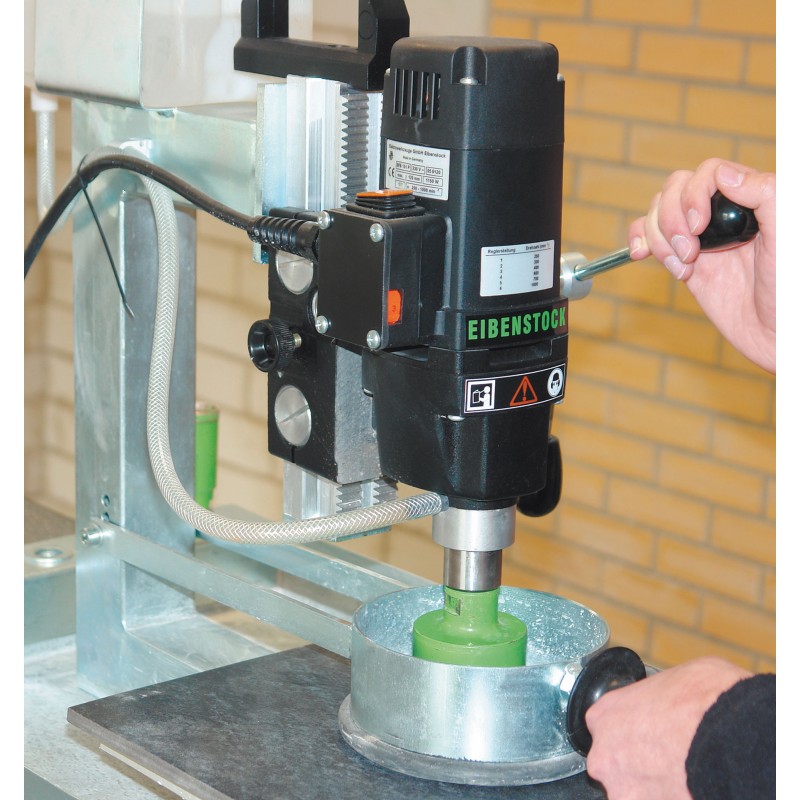

EFB 151 P 4.75" Wet Tile Hole Saw
- EFB 151P wet diamond tile drill & hole saw unit
- With water feed
- For drilling & cutting clean holes in stone & tile
- Stepless speed adjustment
- Electronic features - soft start, temperature control and overcurrent cut-off
- Integrated water supply
- PRCD-protection switch - FI-protection integrated in cable
- Stable design, transport handle for pan and drill motor, mobile
- Pan and support arm galvanised so rust resistant
- Pan(5 kg) and machine(15,9 kg) detachable allow for easy transportation and cleaning
- Additional insert for drilling 40 mm
- Max. plate width 600 mm
- Distance column/drill bit axis 320 mm
- Height adjustable for material thickness up to 30 mm
Precise drilling of even the hardest tiles and plates with minimum effort
The tile drilling machine, together with suitable drill bits, is used to drill tiles and plates of ceramic material, glass or natural stone exclusively in wet process
The EFB 151P tile hole saw with integrated water tank is designed for users carrying out a mostly small number of drillings per work step each time
Data sheet
- Power rating
- 1150w
- Rated speed
- 250-1000rpm
- Wet drilling capacity
- 6-120mm
- Weight
- 20.9kg
- Clearance
- Yes
*wattage based on 230v rating
